Air Compressor Room Layout. Here you will see a suggested compressor room layout in stages for best practices. Completion of a scale drawing is a desirable first step in ensuring proper layout and location of each component. If you search for “compressor layout” or “compressor room ventilation” you will get thousands of responses.

compressor room layout 3D Warehouse from 3dwarehouse.sketchup.com

On to the next important step, that is to check the oil level of your compressor which is visible from the sight glass. The layout of the air compressor room and the placement of the air compressor. The cost of using compressed air is about 10 times the cost of using another utility such as electricity, because of the inefficiencies of the motor and drive, the. For example, if you’re creating your own paint spraying station, you’ll need to. An air storage tank shall be installed behind the air compressor. An air compressor generates power in the form of air pressure, and for an air compressor to work efficiently it requires a certain unit. Please contact us for a no obligation. Ideal compressor room layout see high resolution layout. Placement of air storage tank:

Source: aircompressor-vietnam.com

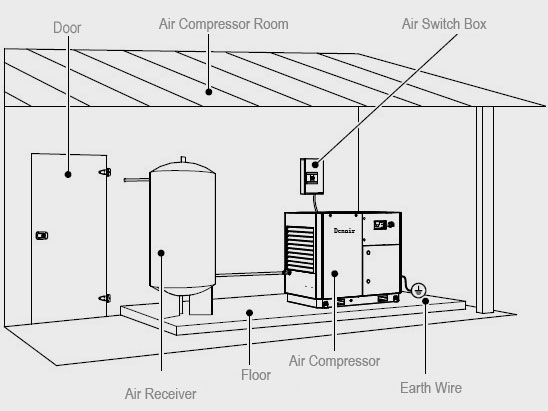

Air compressors work by transferring the power from a motor into energy in the form of compressed air. The inlet air opening should have thermostatically controlled louvers/dampers to automatically open and close based on the temperature. If the room is not large enough to dissipate the heat, an exhaust fan (and possibly an inlet louver) will need to be added. 2.1 the air compressor should be placed directly on a horizontal concrete floor that can bear. Ventilation air should be drawn from the exterior of the compressor room at the lowest and coolest possible point on one of the room’s walls.

Source: es.denair.net

For example, if you’re creating your own paint spraying station, you’ll need to. On to the next important step, that is to check the oil level of your compressor which is visible from the sight glass. 2.1 the air compressor should be placed directly on a horizontal concrete floor that can bear. A 100 hp compressor will exhaust 250,000 btu/hr into a room. Although the installation process is simpler, where and how you design the compressor room still requires a little work.

Source: www.thecompressedairblog.com

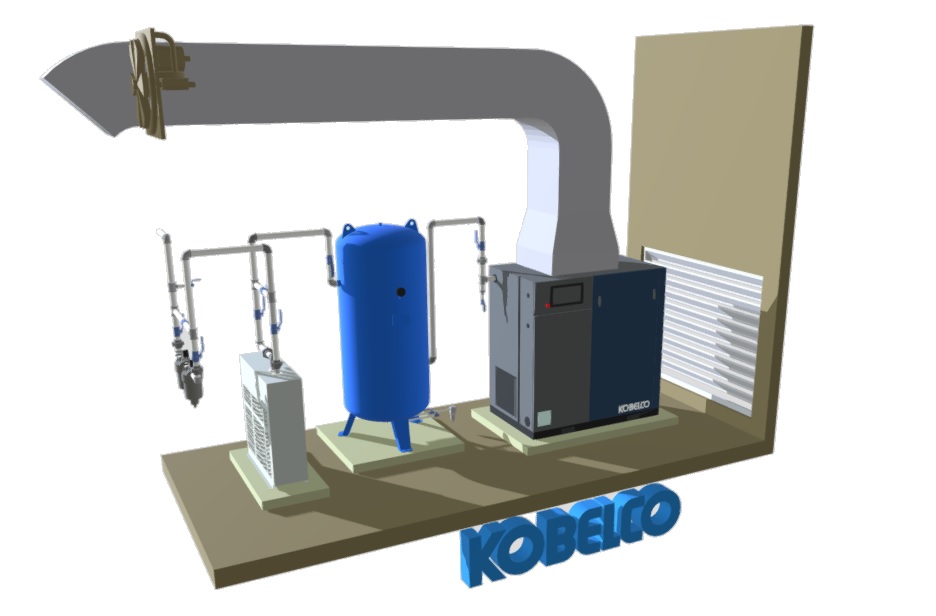

Although the installation process is simpler, where and how you design the compressor room still requires a little work. Therefore, proper ventilation is important when designing an efficient compressor room. This affects how we would solve your problem. The volume of the air storage tank shall be more than 20% of the exhaust volume. Compressor location whenever possible the compressor should be.

Source: 3dwarehouse.sketchup.com

If space is limited, the length should be at least 75 cm to ensure a specific area for ventilation and. Air compressors work by transferring the power from a motor into energy in the form of compressed air. We're happy to help with the design of your. Compressor location whenever possible the compressor should be. For example, if you’re creating your own paint spraying station, you’ll need to.

Source: www.haringacompressor.com

A 100 hp compressor will exhaust 250,000 btu/hr into a room. Please contact us for a no obligation. Provide external ventilation with sufficient sized ducting. Placement of air storage tank: Ventilation air should be drawn from the exterior of the compressor room at the lowest and coolest possible point on one of the room’s walls.

Source: www.youtube.com

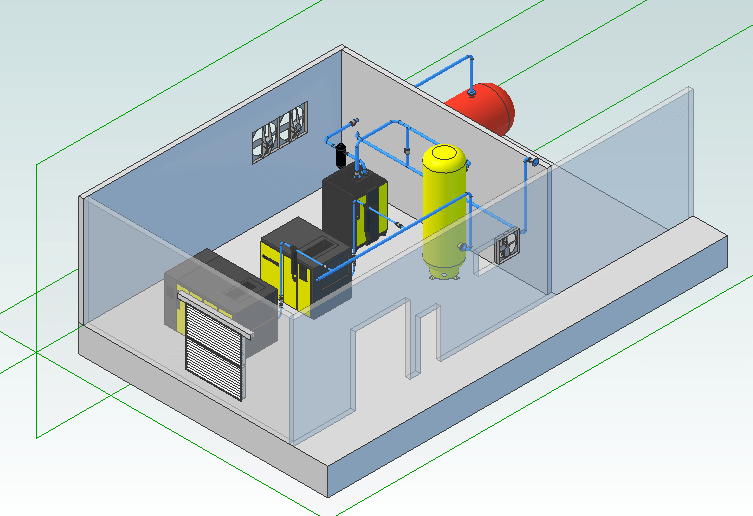

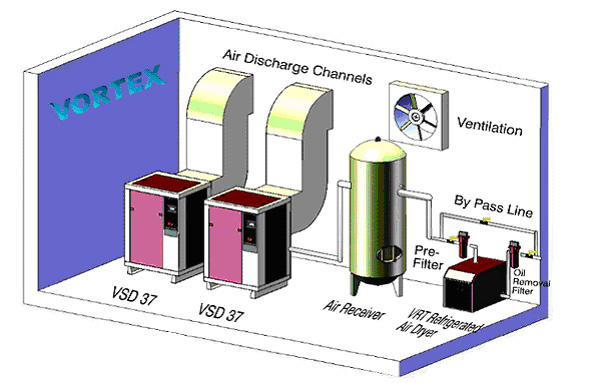

Compressor room with receiver tank and air dryers showing the arrangement of pipes and air filters for particles and oil. Compressor location whenever possible the compressor should be. Although the installation process is simpler, where and how you design the compressor room still requires a little work. To create your own air compressor piping diagram, you need to know your project’s requirements. The capacity of the crane to be decided based on 150% of the highest weight of.

Source: airaudit.com.pk

Although the installation process is simpler, where and how you design the compressor room still requires a little work. Installation services, air compressor room and system design peerless energy systems offers a complete range of services in compressed air system design, compressor room design as well. Compressor equipment layout compressor equipment layout includes setting relative locations of various auxiliary equipments along with compressors, based on type of structure selected. Here are five important considerations when it. Compressor room with receiver tank and air dryers showing the arrangement of pipes and air filters for particles and oil.

Source: gineersnow.com

We recommend the air compressor should keep at a distance of 150 cm from the wall. The inlet air opening should have thermostatically controlled louvers/dampers to automatically open and close based on the temperature. Air compressors work by transferring the power from a motor into energy in the form of compressed air. Each result will have the same two points. The quantity of ventilation air that will need to be removed depends on the size of the.

Source: www.youtube.com

If the room is not large enough to dissipate the heat, an exhaust fan (and possibly an inlet louver) will need to be added. Rapidair compressed air products are designed to power your business. The inlet air opening should have thermostatically controlled louvers/dampers to automatically open and close based on the temperature. Here are five important considerations when it. Completion of a scale drawing is a desirable first step in ensuring proper layout and location of each component.

Source: amazidesign.blogspot.com

Although the installation process is simpler, where and how you design the compressor room still requires a little work. To create your own air compressor piping diagram, you need to know your project’s requirements. The cost of using compressed air is about 10 times the cost of using another utility such as electricity, because of the inefficiencies of the motor and drive, the. Therefore, proper ventilation is important when designing an efficient compressor room. Rapidair compressed air products are designed to power your business.

Source: www.controlsdrivesautomation.com

This is important for free air cooling and heat exchange on a daily basis as well as. Here are five important considerations when it. 2.1 the air compressor should be placed directly on a horizontal concrete floor that can bear. Each result will have the same two points. If the room is not large enough to dissipate the heat, an exhaust fan (and possibly an inlet louver) will need to be added.

Source: www.pinterest.jp

The capacity of the crane to be decided based on 150% of the highest weight of. Compressor location whenever possible the compressor should be. The layout of the air compressor room and the placement of the air compressor. The cost of using compressed air is about 10 times the cost of using another utility such as electricity, because of the inefficiencies of the motor and drive, the. Ideal compressor room layout see high resolution layout.

Source: casservices.co.za

This is important for free air cooling and heat exchange on a daily basis as well as. Ventilation in air compressor room design should: If you don't want dirty air in your compressor, you need to attach filters, and you need to manage the resulting head/pressure. An air compressor generates power in the form of air pressure, and for an air compressor to work efficiently it requires a certain unit. Completion of a scale drawing is a desirable first step in ensuring proper layout and location of each component.

Source: www.pinterest.com

Ventilation in air compressor room design should: The volume of the air storage tank shall be more than 20% of the exhaust volume. Provide external ventilation with sufficient sized ducting. The cost of using compressed air is about 10 times the cost of using another utility such as electricity, because of the inefficiencies of the motor and drive, the. The quantity of ventilation air that will need to be removed depends on the size of the.

Source: designsystemexamples.blogspot.com

To create your own air compressor piping diagram, you need to know your project’s requirements. Provide external ventilation with sufficient sized ducting. If you search for “compressor layout” or “compressor room ventilation” you will get thousands of responses. The compressor room is often the last part considered, leaving it with several problems such as temperature swings, a less efficient system and equipment downtime. All air compressor equipment should have a minimum of three feet of clearance on each side.

Source: rastgar-co.com

The inlet air opening should have thermostatically controlled louvers/dampers to automatically open and close based on the temperature. On to the next important step, that is to check the oil level of your compressor which is visible from the sight glass. An air compressor generates power in the form of air pressure, and for an air compressor to work efficiently it requires a certain unit. Compressor room with receiver tank and air dryers showing the arrangement of pipes and air filters for particles and oil. Moreover, the working environment of air compressors also directly affects user’s working efficiency.

Source: designscad.com

If you search for “compressor layout” or “compressor room ventilation” you will get thousands of responses. Placement of air storage tank: The cost of using compressed air is about 10 times the cost of using another utility such as electricity, because of the inefficiencies of the motor and drive, the. If you don't want dirty air in your compressor, you need to attach filters, and you need to manage the resulting head/pressure. The layout of the air compressor room and the placement of the air compressor.

Source: www.youtube.com

The compressor room is often the last part considered, leaving it with several problems such as temperature swings, a less efficient system and equipment downtime. After you’ve determined your overall requirements and selected the appropriate compressor, you can begin designing the layout of your compressor room. Moreover, the working environment of air compressors also directly affects user’s working efficiency. An air storage tank shall be installed behind the air compressor. Here you will see a suggested compressor room layout in stages for best practices.

Source: www.fromthearmchair.net

Although the installation process is simpler, where and how you design the compressor room still requires a little work. An air compressor generates power in the form of air pressure, and for an air compressor to work efficiently it requires a certain unit. To create your own air compressor piping diagram, you need to know your project’s requirements. This unit is the piping , glue. The cost of using compressed air is about 10 times the cost of using another utility such as electricity, because of the inefficiencies of the motor and drive, the.

Source: mail.airbestpractices.com

On to the next important step, that is to check the oil level of your compressor which is visible from the sight glass. Each result will have the same two points. Here you will see a suggested compressor room layout in stages for best practices. Ventilation in air compressor room design should: Rapidair compressed air products are designed to power your business.

Ventilation Air Should Be Drawn From The Exterior Of The Compressor Room At The Lowest And Coolest Possible Point On One Of The Room’s Walls.

Completion of a scale drawing is a desirable first step in ensuring proper layout and location of each component. The layout of the air compressor room and the placement of the air compressor. Air compressors work by transferring the power from a motor into energy in the form of compressed air. On to the next important step, that is to check the oil level of your compressor which is visible from the sight glass. If you don't want dirty air in your compressor, you need to attach filters, and you need to manage the resulting head/pressure. To create your own air compressor piping diagram, you need to know your project’s requirements. Compressor equipment layout compressor equipment layout includes setting relative locations of various auxiliary equipments along with compressors, based on type of structure selected.

If You Search For “Compressor Layout” Or “Compressor Room Ventilation” You Will Get Thousands Of Responses.

Although the installation process is simpler, where and how you design the compressor room still requires a little work. Ideal compressor room layout see high resolution layout. The volume of the air storage tank shall be more than 20% of the exhaust volume. If the room is not large enough to dissipate the heat, an exhaust fan (and possibly an inlet louver) will need to be added. Please contact us for a no obligation. Be dependent on the size of the compressor and whether you use an. Placement of air storage tank:

All Air Compressor Equipment Should Have A Minimum Of Three Feet Of Clearance On Each Side.

Whether you’re inflating a tire or operating shop tools, our compressor options are a. The cost of using compressed air is about 10 times the cost of using another utility such as electricity, because of the inefficiencies of the motor and drive, the. For example, if you’re creating your own paint spraying station, you’ll need to. Here you will see a suggested compressor room layout in stages for best practices. Keep in mind that the oil level. Therefore, proper ventilation is important when designing an efficient compressor room. This unit is the piping , glue.

Here Are Five Important Considerations When It.

We recommend the air compressor should keep at a distance of 150 cm from the wall. A compressor room must have sufficient. The quantity of ventilation air that will need to be removed depends on the size of the. If space is limited, the length should be at least 75 cm to ensure a specific area for ventilation and. This affects how we would solve your problem.
